Lpg Air And Water Integrated Parking Heater
Water Heaters
Lpg Air And Water Integrated Parking Heater
Fuel air and water integrated parking heater is divided into diesel (Electric version) type and gasoline (Electric version) type, provide indoor heating for RVs, bed cars, yachts and other equipment through four warm air channels, it can also provide hot water for bathing and kitchen at the same time or separately.
Key Features
- Occupies less space and is easy to install; economical and energy-saving, with a mixed mode of fuel and mains electricity.
- Smart Plateau Function.
- Super quiet.
- Air and water combine in one device
- Two options: fuel/electric
- APP control
- Bluetooth upgrade
Applications
- Indoor heating for RVs
- Bed cars and yachts
- Provides hot water for bathing and kitchen
- Multi-pipe hot air supply
Technical Specifications
| Parameter | Value |
|---|---|
| Rated voltage | DC12V |
| Operating Voltage Range | DC10.5V ~ 16V |
| Short-term Maximum Power | 8 ~ 10A |
| AveragePower Consumption | 1.8 ~ 4A |
| Fuel type | Diesel/Gasoline |
| Fuel Heat Power(W) | 2000/4000 |
| Fuel consumption m/h | 240 ~ 270/510 ~ 550 |
| Heating medium | Water/Air |
| Water Tank Capacity | 10L |
| Maximum Pressure of System | 0.35MPa |
| Rated Electric Supply Voltage | ~ 220V/110V |
| Electrical Heating Power | 900W/1800W |
| Electrical Power Dissipation | 3.9A/7.8A, 7.8A/15.6A |
| Working Temperature | -25℃ ~ +40℃ |
| Working Altitude | ≤ 5000m |
| Weight(kg) | 15.6kg(Without water) |
| Dimensions(mm) | 510×450×300 |
| Maximum Pressure of Water Pump | 0.35MPa |

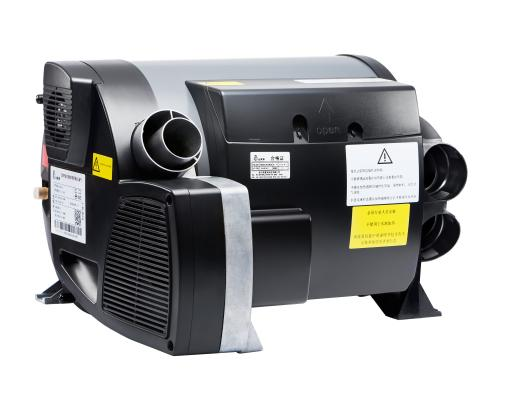

Product Image
Features & Advantages
Smart plateau function
Cost-effective
APP control
Bluetooth upgrade
Electric version
Gasoline version
Brushless motor with long service life
Super quiet
High thermal efficiency
Adjustable hot water temperature
Electric heating function
Special for RV
Comfortable control panel
Air and water combine in one device
Multi-pipe hot air supply
Applications
- Indoor heating for RVs
- Bed cars and yachts
- Provides hot water for bathing and kitchen
- Multi-pipe hot air supply
Comparison with Other Brands
Belief vs Other Brands
| Belief | VS | Other Brands |
|---|---|---|
| Smart plateau | Without smart plateau | |
| Cost-effective | Low cost performance | |
| APP control | Without App | |
| Bluetooth upgrade | Non electric version | |
| Electric version | Without gasoline version | |
| Gasoline version | Brush motor with short life | |
| Brushless motor with long service life | Noisy | |
| Super quiet | Low thermal efficiency | |
| High thermal efficiency | Non adjustable of water temperature | |
| Adjustable hot water temperature | Non electric heating function | |
| Electric heating function | Not special for RV | |
| Special for RV | Complicated operation | |
| Comfortable control panel | Not APP control | |
| Air and water combine in one device | Without Bluetooth upgrade | |
| Multi-pipe hot air supply | Only warm air without hot water | |
| Only fuel without electric function | ||
| Without App control | ||
| Without Bluetooth upgrade | ||
| Only one pipe line |
